Hi everybody, sorry we haven't posted for a while but we are back now with another awesome diesel heater post.


We have posted a similar post to this before but this is the upgraded 2.0 version so we have pulled out all the stops to find some awesome stuff for you.



So these Chinese Diesel Heaters are awesome for the price but it's no big secret that there are some improvements to be made. Sometimes the accessory kit that comes with them are less than top quality, some kits come with awful controllers or the wrong fuel line and none of the kits ever come with a decent mount for fitting it to your vehicle or anything else for that matter.


In this post we will try to cover everything from spare parts incase you loose or break something, upgraded parts for the little bits that might not be good enough for your application and added extras for people who like that sort of thing.


We hope you all find it helpful.




MOUNTS, BOXES & BRACKETS


The type of mount your will need really depends on where you will be mounting your heater, the flat plate that comes with the kit is only really suitable to be mounted on a flat metal surface for anything else it is pretty useless. If you are looking for a flat plate like the one that comes with the kit please see below. As an amazon associate I earn from qualifying purchases


TANOU Car Air Top Heater Mount Plate Bracket






https://amzn.to/2XWkNZM




If you are fitting it in a van with a wooden floor or in an area of your van without a flat floor then you will need to mount your heater to a turret plate before installing it in your van. They are designed to protect your wooden floor from the heat of the exhaust outlet and also so they can be sealed effectively both inside and underneath the van so dangerous fumes can't get inside the vehicle.


If you have insulation under your floor you will need a turret plate with a collar long enough to fit through your wooden floor, insulation and slightly stick out underneath the van.




Mounting Bracket for Auxiliary Heating 30 mm


This has a 30mm collar for a wooden floor without insulation underneath, if you have an insulated floor you will need the turret plate below with a 60 mm collar




https://amzn.to/3o2q9gu




Mounting Bracket for Auxiliary Heating 60 mm


This turret plate has a 60mm collar for wooden floors with insulation underneath, if you do not have any insulation you can use the 30mm plate above


https://amzn.to/3qFWQC7

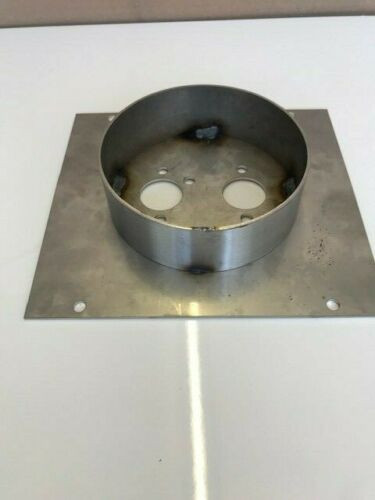

Chinese diesel heater floor mounting plate - planar 100mm



This turret plate has a 100mm collar for wooden floors with extra thick insulation underneath, not as good quality as the items above but good enough and cheap ish



https://ebay.us/cYciCL


If you want to mount a Chinese Diesel heater underneath a vehicle then you need to install in in something that will protect it from the elements. The waterproofing on these heaters and components is less than minimal so unless you protect them they will probably last less than five minuets. You could either make something to install it in yourself or buy something like this that is perfect for the job.




2kw 65mm Turret diesel Heater Box Planar Eberspacher Webasto Chinese stainless


Suitable for 2KW heaters only


https://ebay.us/txt23Q



Chinese 5KW stainless steel diesel heater box





Suitable for 5KW heaters only



https://ebay.us/aCOXH7


If you are lucky enough to have a factory position for these heaters on your van that is already protected from the elements like on a T5 for example you can fit your heater underneath the van without a box, all you will need is one of these brackets and you are good to go.




BLACK Eberspacher Airtronic heater or Webasto VW T5/T6 external mount bracket







http://ebay.us/HLg72R








EXUAST PIPE & ACCESSORIES



One this that is pretty hit or miss with these heaters is the quality of the exhaust pipe that is supplied in the kit, sometimes they diameter is slightly to wide so no matter how hard you try and tighten the hose clips the exhaust pipe will never really tighten onto the heater properly, this is easily solved though with a couple of strategically places slits in the end of the pipe. For more info on how to do this please check out our fitting instructions post, we will post a link to it at the bottom of this blog post.


If you are looking for a like for like replacement for the exhaust pipe that comes in the kits with the heaters please see below.



Viviance 25mm Inner Diameter 500mm Length







https://amzn.to/3bVzBjv




You can also buy this exhaust pipe in longer sections incase you need to reach further to find a suitable location for the exhaust fumes to exit from, the length of the pipe that comes in the kit with the heater is only 50cm long so a lot of you will want to opt for a longer piece.




Mutiwill 120cm Stainless Steel Exhaust Pipe









https://amzn.to/3o2k5Vx






Viviance ZHVIVY 2M 2.5cm Stainless Steel Exhaust Pipe







https://amzn.to/39S8P8S





If you want a decent quality more flexible exhaust pipe that is always the correct diameter at each end then you could upgrade to the exhaust pipe below. It is much better quality and what they use on the German & Russian versions of the heaters.


This exhaust pipe comes from a British seller and can be ordered per meter.




1m Eberspacher 24mm Stainless Steel Flexible Exhaust/Heating Pipe








https://amzn.to/390YtV3




When it comes to attaching the exhaust pipe to your silencer the hose clips that are supplied it the package are pretty useless and we just throw them straight into the bin, for this reason for these we are not going to suggest a like for like replacement and just show you a couple of upgrade options.



The first suggestion is some genuine Jubilee clips with a decent diameter range so you can tighten them up properly.




10 x Genuine Jubilee Clips 22-30mm (1A)






https://amzn.to/3sB1DXo




The second option and a much more heavy duty upgrade would be some proper Eberspacher/Webasto exhaust clamps, you will have no problem securing your pipe to your heater with these.




EBERSPACHER/WEBASTO HEATER 24mm ID EXHAUST CLAMP







http://ebay.us/GkFg2N



The silencers/mufflers that come in the kit are very basic bits of kit, they will do the job but when the heater is on full blast they can be quite loud outside. If you are looking for a like for like replacement for your silencer then please see the link below...




Car Air Diesel Heater Exhaust Pipe Silencer








http://ebay.us/TFqN4g




As we mentioned above the silencers that come in the kit with the heaters are pretty basic and don't do a very good job of making the heater silent, there are a couple of things you can do to cut the amount of noise from the exhaust.


The first option would be to add another silencer and another exhaust pipe. The best way of doing this is to buy a 120 cm exhaust pipe and silencer in a set and install them in the following order with the exhaust pipe and silencer that came with your kit...


Heater, 120cm exhaust pipe, first silencer, 50cm exhaust pipe, second silencer


This should go a long way to cutting noise




Exhaust Muffler 120cm, Stainless Steel Pipe Silencer for Parking air diesel heaters







https://amzn.to/3sJI1R0




A better option would be to upgrade your silence to a better quality silencer made for the German or Russian versions of these heaters. They are far superior to the cheap Chinese ones and will cut the noise of your heater with this one simple upgrade.


Unfortunately they are more pricey than the Chinese ones but for good reason, so if noise outside the van is a big problem for you then these are the way forward.


You could also use the same method as above and add an extra silencer.




Eberspacher Heater Silencer Muffler for 24mm




https://amzn.to/3sPzufc




If you are installing a heater on a boat none of the silencer options above will be suitable for your install, boats have different requirements and therefor different and often more expensive accessories.


For boat installs you will most likely need both of the options below.


First of all you will need to use a "Dedicated Gas tight Marine Exhaust Silencer" for any marine applications...



Webasto or Eberspacher Marine Exhaust Silencer muffler 24mm







https://amzn.to/3qJ35W8




You will also need something to attach to the side of your boat for the exhaust pipe and silence to connect too for the exhaust fumes to exit and so it looks good and neat. For that you will need something like this...




Eberspacher or Webasto Marine Heater Smartfix Boat Exhaust Hull Fitting 24mm







https://amzn.to/3pc2rzV








AIR INTAKE




The air intake hose and silencer/filter that come with the heater are good enough for purpose and do they job they are supposed to do, they make the heater slightly quieter and they keep foreign objects out of the heater.

If you are looking for a like for like replacement for these two bits then please follow the link below…





Combustion Air Intake Filter Pipe





https://amzn.to/3teww4a




If you are looking for an upgrade for your air intake/silencer/filter a really good option would be the Planer/Autoterm air intake with a much better silencer built into it, these silencers really do make a huge difference in keeping your heater quieter especially on start up and would be awesome used in conjunction with the upgrade below...




Autoterm Planar Air Intake Hose With Silencer










http://ebay.us/Agn39y



One problem that a lot of people have with the air intake is that it makes a lot of noise on start up and with the noise of the exhaust at the same time it makes it sound a little bit like a jet engine. One thing that we have found that makes a lot of difference to this is a MuffMaster silencer. They are pretty much impossible to find in the UK but we have found a link to eBay in the U.S that will ship to the UK




*US STOCK* MuffMaster Chinese Diesel Heater Air Intake Silencer Filter









http://ebay.us/G5irEh





INTERNAL SPARE PARTS



These heaters are pretty simple by design so there isn't really much that can go wrong with them however there are a few things that might but luckily they are quite easy to change yourself at home so the parts are available so you can fix any problems yourself.


One thing that might stop working overtime is the glow plug, these have a limited life span or the heaters sometimes turn up with a defective glow plug fitted and when you try and fire up the heater you will get an E03 error code.


They are pretty simple to replace yourself but you will need a special tool to do it too...




Air Diesel Heater Ceramic Glow Plug 12V For Car Truck Boat Parking Heater






https://ebay.us/HWbGUl



The glow plug below is the same as the one above the only difference is the speed of the delivery, the one below is more expensive but if you are in a hurry and have an amazon prime membership you can get it same day if ordered early enough.




MASO 12V Universal Car Ceramic Glow Plug 88-98W







https://amzn.to/3o7qQFx




And as I mentioned above you will need a special tool to change your glow plugs, it is probably best to buy these in anticipation of your glow plug failing as they all seem to come from china so will take longer to arrive than your glow plug





Semoic 2Pcs 12mm Car Air Heater Glow Pin Removal Tool





https://amzn.to/3iD2KBb




When you change the glow plug or service the heater you should also change the atomiser mesh so make sure you have some handy...




10* Glow Plug Burner Stainless Steel Filter Screen For Diesel Air Parking Heater






http://ebay.us/E0TPiR




Another internal part that might go wrong is the temp sensor, when this goes wrong the motherboard thinks that the heater is too hot even if it is stone cold and will go into cool down mode with the fan spinning and it will be blowing cold air.


If you have ever walked into your van and the heater is on for no reason and blowing cold air the temp sensor is the most likely culprit an you might be getting a E03 or an E09 error code, to fix this problem you will need one of these...




Car Auto Parking Heater Temperature Sensor







https://ebay.us/exgTMT




If your heater gets sooted up and filled with carbon then you might need to take it apart to give it a good clean, this is very easy to do however to put it back together again you are going to need a couple of new gaskets to make sure everything seals properly.





2 Pcs Gaskets Replacement Set For Webasto Airtop Air Diesel Heater Engine 5KW



5KW ONLY


http://ebay.us/aeWQxy




2pcs For Webasto Airtop Gasket Set Air Diesel Heater Replace Accessories 2KW



2KW ONLY


http://ebay.us/TQJcVL




Some heaters come with really bad controllers that have no instruction videos or manual online anywhere so they can be really hard to understand and sometime impossible to use. Sometimes you can just order a different style control panel online and it will work with your heater and you are good to go, with some heaters though this will not work and you will not be able to upgrade to a new controller at all. If you are in this situation you could always just change the motherboard for one that will work with all the decent controllers on the market...




Air-Diesel Heater Control Board Motherboard for 12V/24V 3/5KW Diesel Air Heater



FOR 5KW HEATERS



http://ebay.us/pyyFG3



1x Control Board Accessories Motherboard Black For 12V 2KW Diesel Air Heater



FOR 2KW HEATERS



http://ebay.us/vqg5nL





***NEW ADDITIONS 25/02/2021***





Qii lu Heater Harness, Separated Type Diesel Heater Harness Car Parking Heater Harness Main Wire Harness Kit




https://amzn.to/3qUXzzY










CONTROL PANELS & REMOTE CONTROL




You might have been lucky enough to get one of the good controllers with your heater but if you haven't and you are looking to upgrade to a better controller or even a simpler controller you have a few to choose from but these are our favourites



The most common type on the market and the type with the most instructional videos about them on youtube is this type, it is simple to use comes with a remote and works with most heaters with the rounded triangle type connector. it is also compatible with the 5KW mother board above.




SUNWAN 12V Car Heater LCD Switch Controller with 4 Button Remote Control For Car Diesels Air Heater Parking Heater






https://amzn.to/3nYoFpo



If you don't like the idea of of a digital controller that is always lit up up like Christmas tree then you might want to try a rotary controller instead, these are very simple controllers but only let you do basic things. It is a good idea to have a digital controller spare if you have one of these incase you ever need to go into the heaters settings or set a timer on the heater.


Again this heater works with most heaters with the rounded triangle type connector and is compatible with 2KW and 5KW heaters.




Parking Heater Controller DC 12V/24V Climate Control Panel Knob Switch





https://amzn.to/2NtIXc8





Another option and probably the best Chinese controller on the market at the moment is the one below, it works pretty much the same as the first controller I sent you but it has a few extra good points. The first is that is can sense what altitude you are currently at and adjust fuel and air settings when at higher altitudes unlike any of the older models and the other main difference is that the remote has a LCD screen on it too so you can see the heaters settings etc and this makes life a lot easier.



12V / 24V air diesel heater parking switch panel parking heater remote control blue LCD with red remote control





https://amzn.to/2Y5QnUU





FUEL SYSTEM



If you have been unlucky enough to have a heater delivered with the green fuel pipe then it is a good idea to replace it before you install it as it is the wrong type of fuel pipe for these heaters and it will give you nothing but problems. A common fault with heaters with this fuel line is massive air bubbles that will cause your heater to think it has run out of fuel and shut down giving you an E08 error code. This is because the inner diameter of the pipe is MUCH too thick and the pipe is too flexible.


Sometimes the all in one heaters come with this horrible green fuel pipe too so even if you have one of those there is a good change you will get unwanted E08 error codes and the fuel pipe should be changed


The correct stuff to use is the rigid plastic type with the correct inner diameter with small pieces of thicker fuel pipe to join the pieces together like this...
